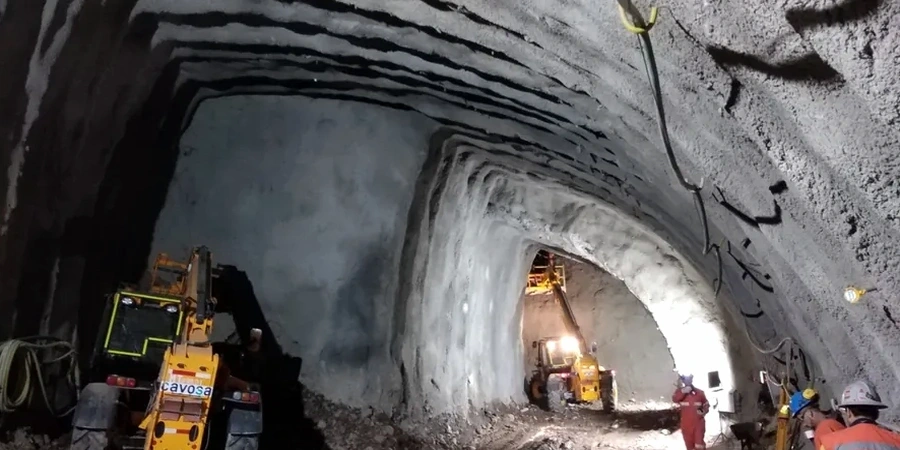

In Plano, what catches engineers off guard isn't finding rock—it's the opposite. You hit stiff, dessicated clay near the surface and assume competent ground, then 15 or 20 feet down the moisture content climbs and the undrained shear strength drops well below what a shallow footing would demand. Our lab has processed hundreds of split-spoon and Shelby tube samples from sites between Legacy and downtown, and the pattern repeats: the Eagle Ford shale weathers into a firm upper crust but transitions into a plastic, slickensided material that behaves more like a fat clay under confined conditions. For tunnel alignment design, that transition zone controls everything—face pressure, annular gap grouting, and settlement trough width. We routinely pair advanced triaxial testing on undisturbed specimens with Atterberg limits to bracket the plasticity range, and when the alignment crosses paleochannels—common near Rowlett Creek—we add grain size analysis to flag lenses of silty sand that can cause sudden water inflow during excavation.
A tunnel in Plano clay doesn't fail from UCS—it fails because the groundwater regime across the weathered shale interface wasn't properly characterized before the first cutterhead advance.
Our approach and scope
Local considerations
Plano grew fast—from a quiet farming town of about 3,700 people in 1970 to a city of nearly 300,000 today—and much of the underground utility network was installed before the geotechnical community fully understood how expansive clays interact with buried structures over decades of wet-dry cycles. The risk for a soft ground tunnel isn't just face instability during construction; it's the long-term ovalization of the lining as the surrounding clay rehydrates after years of drainage. We've seen manholes along Parker Road that have crept upward by two inches simply from swell pressure acting on the base slab. In a tunnel, that same swell pressure can generate bending moments in the segmental lining that weren't accounted for in the original structural design. That's why we insist on running swell-consolidation tests at multiple depths and reporting the results alongside the conventional strength envelope. When the alignment dips under a creek crossing, the risk compounds—saturated clay loses suction, and the stand-up time in an open-face excavation can drop below what the contractor planned for. Our lab prioritizes turnaround on these tests because we know the contractor's schedule hinges on getting the ground model right before the TBM launch pit is even excavated.
Relevant standards
ASTM D4767 – Consolidated Undrained Triaxial Compression Test for Cohesive Soils, ASTM D4318 – Standard Test Methods for Liquid Limit, Plastic Limit, and Plasticity Index of Soils, ASTM D2435 – One-Dimensional Consolidation Properties of Soils Using Incremental Loading, ASTM D4546 – Standard Test Methods for One-Dimensional Swell or Collapse of Soils, IBC Chapter 18 – Soils and Foundations (expansive soil provisions)
Related services
Tunnel alignment geotechnical characterization
Comprehensive lab testing suite including Atterberg limits, grain size distribution by hydrometer, one-dimensional consolidation, and CIU triaxial with pore pressure measurement. We provide soil behavior type classification per Robertson and effective stress parameters for input into PLAXIS or FLAC models.
Swelling and softening potential assessment
Focused program of swell-consolidation tests, suction measurements via filter paper method, and remolded strength testing to quantify the strength loss upon wetting. Includes shrink-swell index and a written interpretative summary comparing results to published correlations for the Eagle Ford formation.
Typical parameters
Common questions
What's the typical cost range for a geotechnical lab testing program to support a soft ground tunnel design in Plano?
For a Plano tunnel project, the lab testing budget generally falls between US$4,820 and US$19,160, depending on the number of boreholes, the depth of the alignment, and the mix of index versus advanced triaxial and consolidation tests. A shorter pedestrian tunnel with three or four borings might sit at the lower end, while a multi-block TBM alignment with undisturbed sampling every five feet and multiple CIU triaxial suites will push toward the upper end. Every quote is project-specific and we provide a line-item breakdown before any work begins.
How do you handle sample disturbance in the soft gray clay below the weathered crust?
Sample disturbance in the softer zone is a real concern—if the Shelby tube isn't handled carefully, you'll see remolded zones along the perimeter that give artificially low triaxial strengths. We log every tube upon extrusion, photograph the sample, and trim away any disturbed annulus before preparing the specimen. For consolidation tests, we look at the shape of the e-log σ' curve; if the preconsolidation pressure comes back lower than expected from the geologic stress history, we flag potential disturbance and may recommend re-sampling with a stationary piston sampler.
Do you provide parameters for both drained and undrained tunnel analysis?
Yes. For short-term face stability and construction-phase analysis, we deliver undrained shear strength from unconsolidated-undrained and consolidated-undrained triaxial tests. For long-term lining design—when the excess pore pressures have dissipated—we provide effective stress parameters (c' and φ') from the CIU tests with pore pressure measurement, plus the consolidation parameters Cc, Cr, and cv from oedometer tests. The report includes separate parameter sets with clear notes on which analysis phase each set applies to, consistent with the observational method approach outlined in the ITA-AITES guidelines for soft ground tunneling.
