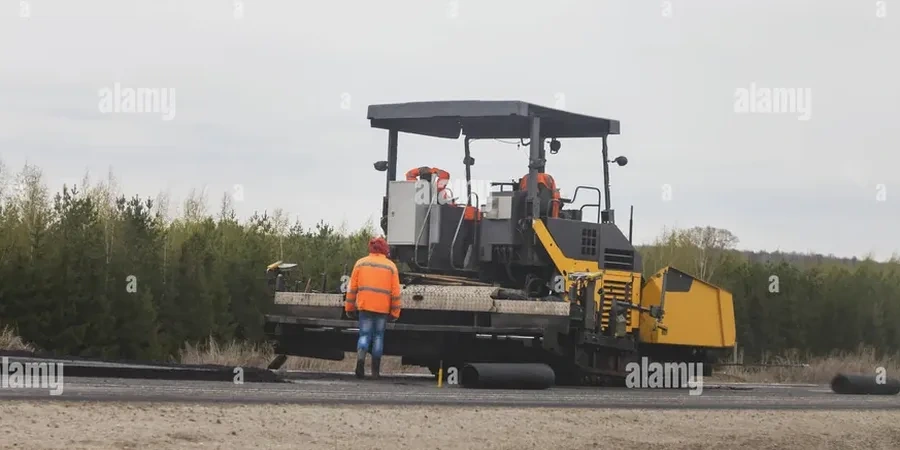

Driving from the tight clay subdivisions of west Plano over to the sandy loam pockets near the old downtown, you can feel the difference in the road beneath your tires before you ever see a crack. The soil changes fast here, and a pavement section that holds up beautifully in one neighborhood can start rutting or heaving a block away if you copy-paste the design. In Plano Texas, flexible pavement design isn't just about layer thicknesses — it's about reading what the subgrade is going to do across wet-dry cycles. The Eagle Ford shale and Austin chalk weathered residuals we encounter across Collin County carry high PI values, often pushing past 30, and that means volume change potential has to be addressed before the first ton of Type D HMAC ever hits the grade. We correlate CBR road testing directly with the structural number so the pavement actually reflects what’s underneath, not just a textbook table.
In Plano’s expansive clays, the pavement structural number means nothing if the subgrade moisture regime hasn’t been stabilized first.
Our approach and scope
Local considerations
A few years back we got called to a commercial site off Preston Road where a brand-new parking lot had rutted 3 inches in the first eighteen months. The original design had specified standard lime treatment at 6 inches, but nobody checked the sulfate content in the native clay. The sulfates reacted with the lime and formed ettringite, swelling the treated layer from within. That one missed test cost the developer a full removal-and-replace. In Plano Texas, sulfate-induced heave in lime-treated subgrades is a real failure mode that gets overlooked when the geotech report stops at Atterberg limits and doesn’t run a soluble sulfate screen. We’ve also seen projects where the flexible pavement design was sound on paper but the contractor compacted the subgrade wet of optimum trying to beat a rain front — the section lost half its structural number before the HMAC even cooled. Moisture control during subgrade preparation in our heavy clay environment is not a QC checkbox; it’s the whole game.
Video resource
Relevant standards
ASTM D1883 (Soaked CBR for subgrade and base), ASTM D4318 (Atterberg Limits, PI determination), AASHTO R-50 (Geotechnical Input for Mechanistic-Empirical Pavement Design), Tex-120-E (Lime treatment procedures for Texas subgrades), ASTM C1580 (Water-soluble sulfate in soil)
Related services
Subgrade Characterization & Stabilization Design
Full suite of Atterberg limits, sulfate screening, and soaked CBR on Shelby tube samples collected at grade. We design the lime or cement treatment percentage, mellowing period, and compaction envelope specific to the plasticity index and sulfate risk of your Plano site.
AASHTO 93 Structural Section & Life-Cycle Analysis
Traffic-loading projections converted to 18-kip ESALs with growth factors per TxDOT regional data. We deliver a layer-by-layer structural number breakdown with material coefficients validated against the local flexible base and HMAC mix designs, plus a drainage analysis for edge conditions.
Typical parameters
Common questions
What is the typical flexible pavement section for a residential street in Plano Texas?
Most Plano residential collectors run 2 inches of Type D HMAC over 6 inches of flexible base (Grade 2 limestone) on 8 inches of lime-treated subgrade, but that section must be verified against the actual plasticity index and soaked CBR. If the PI is above 35, we usually push the treatment depth to 10 inches and specify a 24-hour mellowing period before final compaction.
How much does a flexible pavement design study cost in Plano?
For a typical commercial or residential project in Plano Texas, a flexible pavement design report including subgrade sampling, Atterberg limits, sulfate screening, soaked CBR, and the AASHTO 93 structural analysis runs between US$1,670 and US$5,480 depending on the number of borings and the traffic-loading complexity. Larger arterial designs with MEPDG calibration fall on the higher end.
Why does sulfate content matter for flexible pavement design in Plano soils?
The weathered shale and clay residuum across Plano Texas can carry water-soluble sulfate concentrations above 3,000 ppm. When these soils are treated with calcium-based lime, the sulfate reacts to form ettringite, a mineral that expands volumetrically and can heave the treated subgrade. We run ASTM C1580 soluble sulfate screens on every project to determine whether lime is safe or whether a sulfate-resistant alternative like Type I/II cement is required.
What ESAL value should I use for a Plano Texas commercial parking lot?
For a standard commercial parking lot in Plano Texas with light delivery truck traffic, we typically design to 0.5 to 1.0 million 18-kip equivalent single axle loads over a 20-year period. If the lot serves heavy distribution vehicles or trash compactor access, that number can climb to 1.5 million ESALs and the structural number and base thickness adjust accordingly. We pull traffic data from the developer’s expected tenant mix and run the growth factor per TxDOT regional projections.
How do you verify that the treated subgrade actually achieved the design CBR?
After the lime mixing and mellowing, we return to the site and run nuclear density gauge testing alongside in-situ DCP (Dynamic Cone Penetrometer) readings. The DCP penetration index correlates directly to soaked CBR, and we require a minimum of 6% CBR post-treatment before the base course is placed. If the numbers don’t hit the target, we adjust the remixing or moisture conditioning before the section gets covered up.
